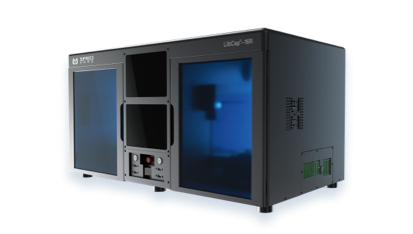

LibCap

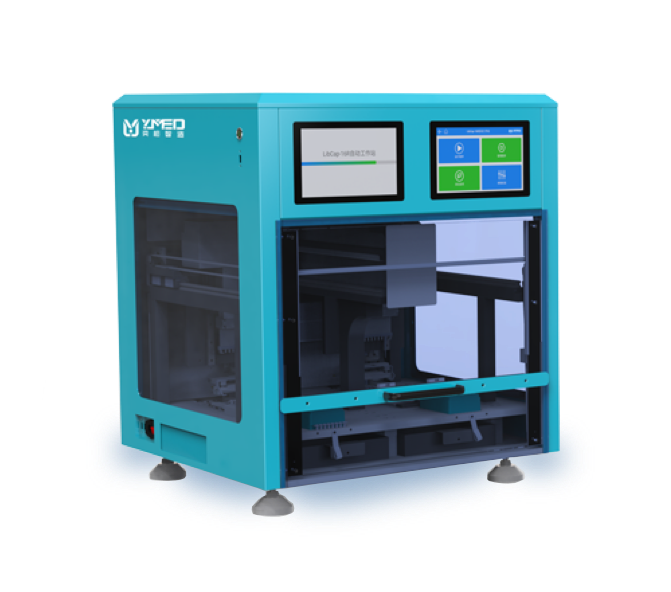

The LibCap Automated Library Preparation/Capture Workstation is a dedicated system for NGS (Next-Generation Sequencing) targeted sequencing. It supports multiple experimental workflows including library construction, hybridization capture, and multiplex PCR, significantly reducing laboratory labor costs while enhancing experimental stability and performance.
Product Features
Saves manpower and time
90% less manual work
Walk-away automation
Excellent performance
>60% reduction in variability
8-module precision
Integrated functions
PCR + Purify
Imaging + Storage
UV + HEPA
Flexible and fast
1-16 samples
2×8 channels
Modular steps
Product Functions
Library Construction
Hybridization Capture
Multiplex PCR
Application Areas
Tumor / Cancer
Tumor Panel Sequencing
Infection
mNGS/Capture Metagenomics/tNGS
Genetic Disease
Genetic Disease Panel Sequencing
Others
Big Health/Agricultural Breeding
Performance Parameters
| Pipette | Types of Pipettes | 8-Channel Fixed Tip Spacing Pipette | |
| Pipetting Volume Range | 10μL-200μL | ||
| Pipetting Accuracy | 10μL±5.0% | 200μL±1.0% | |
| PCR Instrument | Temperature Range | 0-99°C | |
| Temperature Accuracy | ±0.2°C at 20°C/30°C | ±0.2-0.5°C at 55°C/72°C | |
| Temperature Control Module | Temperature Range | 2-70°C | |
| Temperature Accuracy | ±0.5°C at 55°C/65°C | ||
| Positioning Accuracy of Robotic Arm | ±0.1mm | ||
| Air Purification System | Negative Pressure HEPA Filtration | ||
| Working Environment | Temperature Requirements | 15°C-30°C | |
| Relative Humidity | 20%RH - 80%RH, No Condensation | ||
| Barometric Pressure Range | 85-105kPa | ||
| Power Supply Requirements | 100-240V, 50/60HZ, 2000VA | ||
| Size | Width 715mm × Depth 730mm × Height 835mm | ||
| Product Weight | 150kg | ||

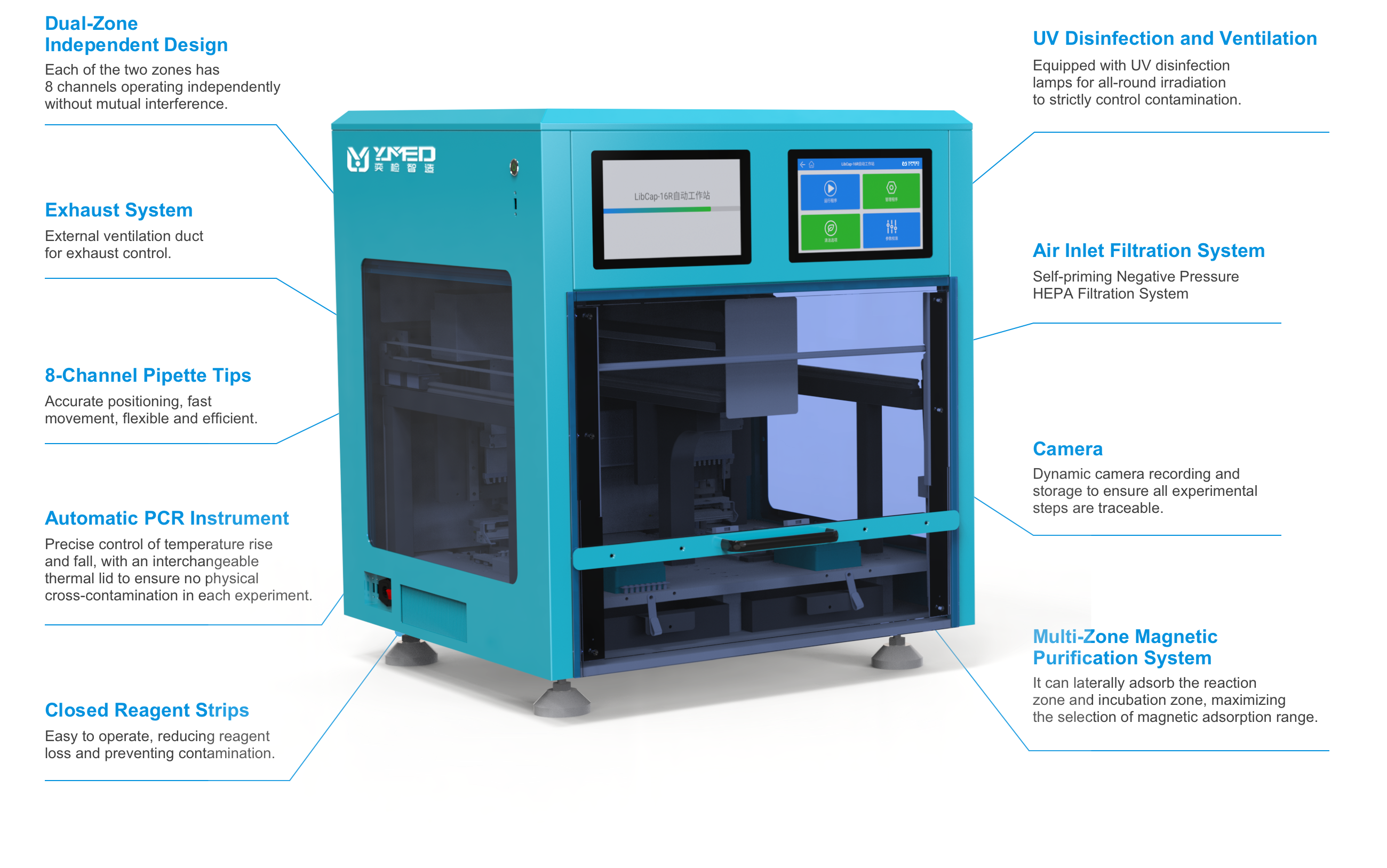

Functional Modules

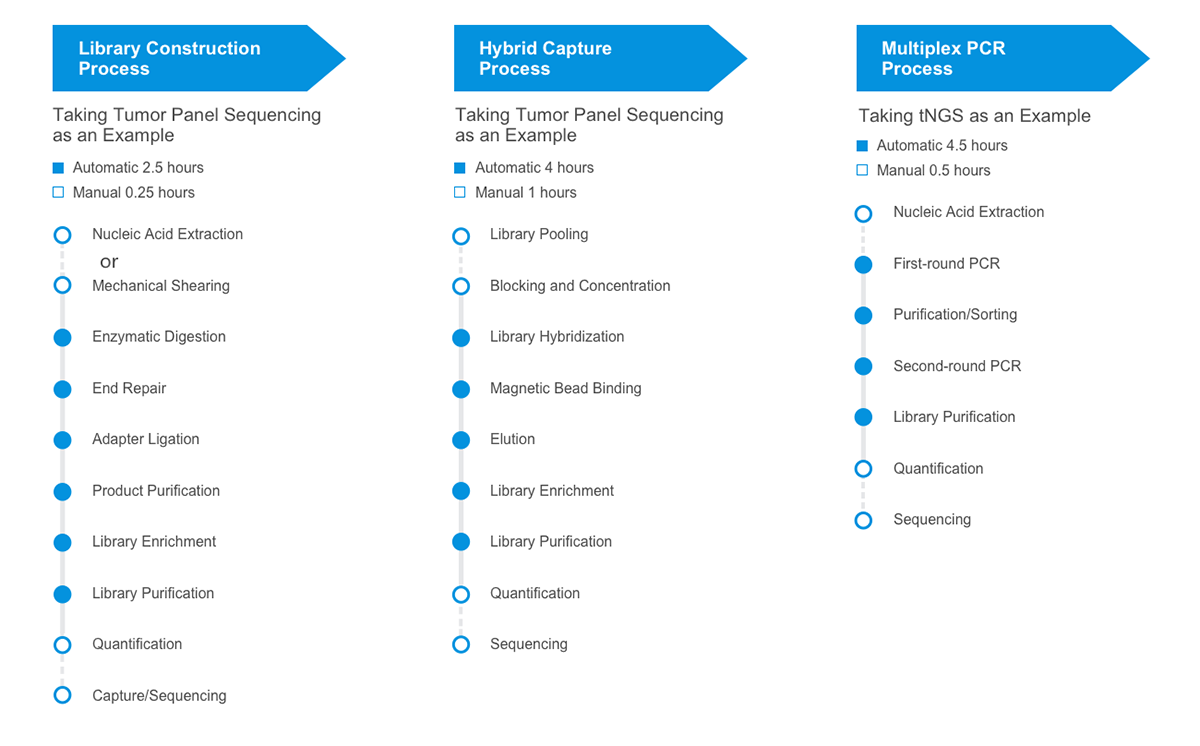

Operation Process
